| Performance |
Application |
| Max Pressure¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý 10§¸/§² |
sewage Pump, Chemical Pump |
| Max Temperature¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý -40¡É ~ 200¡É |
Hot fuel oil |
| Max Speed ¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý 15§½ |
Water Pump |
|
|
|
|
|
| |

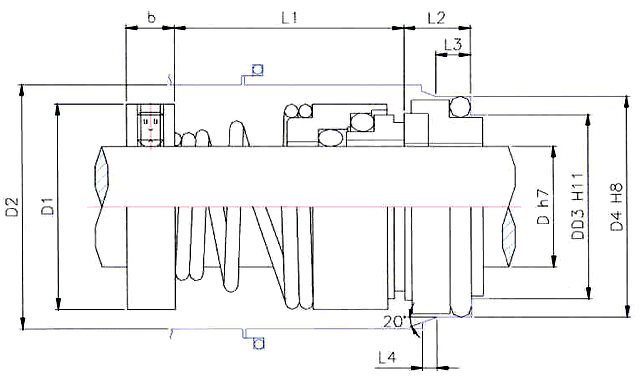

| SIZE |
D |
D1 |
D2 |
D3 |
D4 |
L1 |
L2 |
L3 |
L4 |
b |
| 011 |
11 |
25 |
27 |
20(19) |
26(25) |
21 |
11.5 |
8.5 |
2.0 |
10 |
| 015 |
15 |
29 |
31 |
25(24) |
31(30) |
26 |
11.0 |
8 |
2.0 |
10 |
| 018 |
18 |
32 |
34 |
28(27) |
34(33) |
26 |
11.0 |
8 |
2.0 |
10 |
| 020 |
20 |
34 |
36 |
30(29) |
36(35) |
28 |
11.0 |
8 |
2.0 |
10 |
| 025 |
25 |
39 |
41 |
35(34) |
41(40) |
30 |
12.0 |
8 |
2.0 |
10 |
| 028 |
28 |
42 |
44 |
38(37) |
44(43) |
30 |
12.0 |
9 |
2.0 |
10 |
| 030 |
30 |
44 |
46 |
40(39) |
46(45) |
31 |
13.0 |
9 |
2.0 |
10 |
| 032 |
32 |
46 |
48 |
42(42) |
48(48) |
33 |
13.0 |
9 |
2.0 |
10 |
| 035 |
35 |
49 |
51 |
45(44) |
51(50) |
33 |
13.0 |
10 |
2.0 |
10 |
| 040 |
40 |
56 |
60 |
50(51) |
56(58) |
39 |
14.0 |
11 |
2.0 |
12 |
| 045 |
45 |
61 |
65 |
55(56) |
61(63) |
42 |
14.0 |
11 |
2.0 |
12 |
| 050 |
50 |
66 |
70 |
60(62) |
66(70) |
47 |
15.0 |
12 |
2.5 |
12 |
| 055 |
55 |
71 |
75 |
65(67) |
71(75) |
53 |
15.0 |
12 |
2.5 |
12 |
| 060 |
60 |
76 |
85 |
72(72) |
78(80) |
59 |
16.0 |
13 |
2.5 |
12 |
| 065 |
65 |
83 |
90 |
77(77) |
83(85) |
59 |
16.0 |
13 |
2.5 |
12 |
| 070 |
70 |
90 |
95 |
81(83) |
90(92) |
59 |
18.0 |
15 |
2.5 |
13 |
| 075 |
75 |
95 |
104 |
86(88) |
95(97) |
64 |
18.0 |
15 |
2.5 |
13 |
| 080 |
80 |
100 |
109 |
91(95) |
100(105) |
64 |
17.0 |
15 |
3.0 |
13 |
| 085 |
85 |
105 |
114 |
96(100) |
105(110) |
64 |
18.0 |
15 |
3.0 |
13 |
| 090 |
90 |
110 |
119 |
101(105) |
110(115) |
67 |
18.0 |
15 |
3.0 |
14 |
| 095 |
95 |
115 |
124 |
106(110) |
115(120) |
67 |
18.0 |
15 |
3.0 |
14 |
| 100 |
100 |
120 |
129 |
116(115) |
125(125) |
67 |
20.0 |
17 |
3.0 |
14 |
| Note : ( ) DIN Standard |
|
|
| |
