  CSU SU SR MSU CMB MSB DSU ISB


Performance Application
Max Pressure¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  10§¸/§² Alkali, Sanitary pump seal
Max Temperature¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  -40¡É ~ 200¡É Hot fuel oil
Max Speed ¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  20§½ Clean water Pump

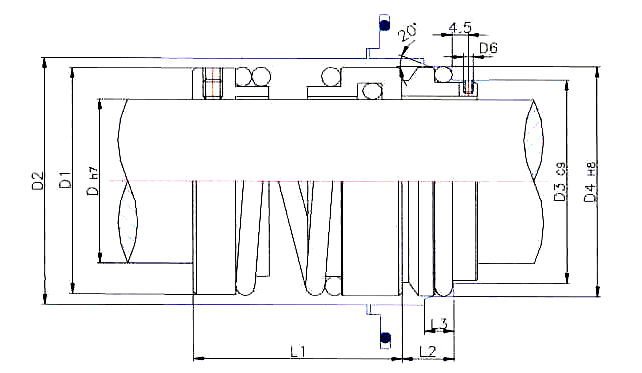

SIZE D D1 D2 D3 D4 L1 L2 L3
010 10 18 22 17 21 31.5 8.5 5.5
012 12 20 24 19 23 31.5 8.5 5.5
014 14 23 26 21 25 31.5 8.5 5.5
016 16 25 28 23 27 31.5 8.5 5.5
018 18 30 34 27 33 35.5 9.5 7
020 20 32 36 29 35 35.5 9.5 7
022 22 34 38 31 37 35.5 9.5 7
024 24 36 40 33 39 40.5 9.5 7
025 25 38 41 34 40 40.5 9.5 7
026 26 40 42 34 40 40.5 9.5 7
028 28 42 44 37 43 40.5 9.5 7
030 30 44 46 39 45 40.5 9.5 7
032 32 45 48 42 48 45.5 9.5 7
033 33 46 49 42 48 45.5 9.5 7
035 35 48 51 44 50 45.5 9.5 7
038 38 52 58 49 56 45 10 8
040 40 54 60 51 58 45 10 8
043 43 57 63 54 61 46.5 13.5 8
045 45 60 65 56 63 46.5 13.5 8
048 48 63 68 59 66 46.5 13.5 8
050 50 65 70 62 70 46 14 8.5
053 53 69 73 65 73 56 14 8.5
055 55 71 75 67 75 56 14 8.5
058 58 74 83 70 78 56 14 8.5
060 60 78 85 72 80 56 14 8.5
065 63 81 88 75 83 56 14 8.5
063 65 83 90 77 85 66 14 8.5
068 68 87 93 81 90 62.5 17.5 9.5
070 70 89 95 83 92 62.5 17.5 9.5
075 75 95 104 88 97 62.5 17.5 9.5
080 80 100 109 95 105 72.5 17.5 10
085 85 107 114 100 110 72.5 17.5 10
090 90 112 119 105 115 72.5 17.5 10
095 95 119 124 110 120 72.5 17.5 10
100 100 124 129 115 125 72.5 17.5 10
