  CSU SU SR MSU CMB MSB DSU ISB


Performance Application
Max Pressure¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  10§¸/§² Non Crystallizing acid, Alkali, Sal
Max Temperature¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  -40¡É ~ 200¡É Low viscosity fluid
Max Speed ¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  20§½ Low slurry water.

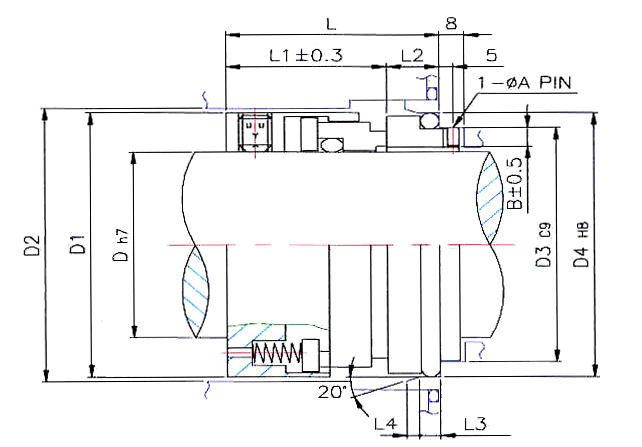

SIZE D D1 D2 D3 D4 L L1 L2 L3 L4 A B
020 20 34 36 29 35 38.0 28 10.0 5.5 2.0 3 3.5
024 24 38 40 33 39 38.0 28 10.0 5.5 2.0 3 3.5
025 25 39 41 34 40 38.0 28 10.0 5.5 2.0 3 3.5
028 28 42 44 37 43 38.0 28 10.0 5.5 2.0 3 3.5
030 30 44 46 39 45 38.0 28 10.0 5.5 2.0 3 3.5
032 32 46 48 42 48 38.0 28 10.0 5.5 2.0 3 3.5
033 33 47 49 42 48 38.0 28 10.0 5.5 2.0 3 3.5
035 35 49 51 44 50 38.0 28 10.0 5.5 2.0 3 3.5
038 38 55 58 49 56 42.0 31 11.0 6 2.0 4 4.0
040 38 57 60 51 58 42.0 31 11.0 6 2.0 4 4.0
042 42 59 62 54 61 42.0 31 11.0 6 2.0 4 4.0
043 43 60 63 54 61 42.0 31 11.0 6 2.0 4 4.0
045 45 62 65 56 63 42.0 31 11.0 6 2.0 4 4.5
048 48 65 68 59 66 42.0 31 11.0 6 2.0 4 4.5
050 50 67 70 62 70 44.0 31 13.0 6 2.5 4 4.5
053 53 70 73 65 73 44.0 31 13.0 6 2.5 4 5.0
055 55 72 75 67 75 44.0 31 13.0 6 2.5 4 5.0
060 60 77 85 72 80 44.0 31 13.0 6 2.5 4 5.0
063 63 80 88 75 83 44.0 31 13.0 6 2.5 4 5.0
065 65 82 90 77 85 44.0 31 13.0 6 2.5 4 5.0
070 70 87 95 83 92 46.0 31 15.0 7 2.5 4 5.0
075 75 92 104 88 97 46.0 31 15.0 7 2.5 4 5.0
080 80 97 109 95 105 46.5 31 15.5 7 3.0 4 6.0
085 85 102 114 100 110 46.5 31 15.5 7 3.0 4 6.0
090 90 107 119 105 115 46.5 31 15.5 7 3.0 4 6.0
095 90 112 124 110 120 46.5 31 15.5 7 3.0 4 6.0
100 100 117 129 115 125 46.5 31 15.5 7 3.0 4 6.0
