Performance Application
Max Pressure¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  20§¸/§² Hot oil, Salt, Hydrocarbon
Max Temperature¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  -40¡É ~ 230¡É Waste pulp solutions, Alkali,
Max Speed ¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý¤ý  20§½ Crystallizing acid, etc.

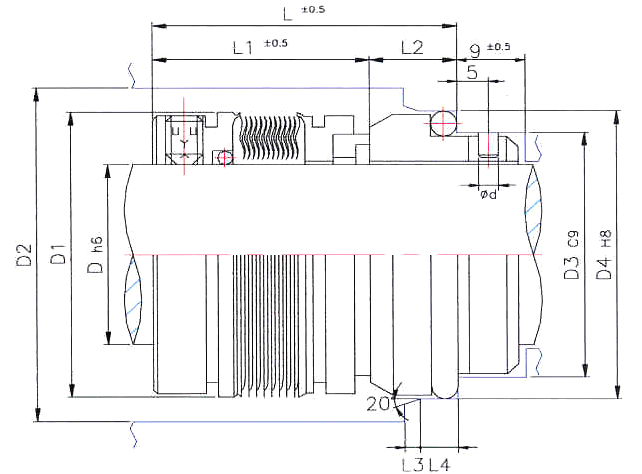

SIZE D D1 D2 D3 D4 L L1 L2 L3 L4 d
018 18 32.0 34 27 33 37.5 27.5 10 2.0 5 3
020 20 33.5 36 29 35 37.5 27.5 10 2.0 5 3
022 22 36.5 38 31 37 37 27.5 10 2.0 5 3
024 24 39.0 40 33 39 40.0 30.0 10 2.0 5 3
025 25 39.6 41 34 40 40.0 30.0 10 2.0 5 3
028 28 42.8 44 37 43 42.5 32.5 10 2.0 5 3
030 30 45.0 46 39 45 42.5 32.5 10 2.0 5 3
032 32 46.0 48 42 48 42.5 32.5 10 2.0 5 3
033 33 48.0 49 42 48 42.5 32.5 10 2.0 5 3
035 35 49.2 51 44 50 42.5 32.5 10 2.0 5 3
038 38 52.3 58 49 56 45.0 34.0 11 2.0 6 4
040 40 55.5 60 51 58 45.0 34.0 11 2.0 6 4
043 43 57.5 63 54 61 45.0 34.0 11 2.0 6 4
045 45 58.7 65 56 63 45.0 34.0 11 2.0 6 4
048 48 61.9 68 59 66 45.0 34.0 11 2.0 6 4
050 50 65.0 70 62 70 47.5 34.5 13 2.5 6 4
053 53 68.2 73 65 73 47.5 34.5 13 2.5 6 4
055 55 70.0 75 67 75 47.5 34.5 13 2.5 6 4
058 58 71.7 83 70 78 52.5 39.5 13 2.5 6 4
060 60 74.6 85 72 80 52.5 39.5 13 2.5 6 4
063 63 79.0 88 75 83 52.5 39.5 13 2.5 6 4
065 65 84.1 90 77 85 52.5 39.5 13 2.5 6 4
068 68 87.3 93 81 90 52.5 39.5 15.3 2.5 7 4
070 70 87.3 95 83 92 60.0 44.7 15.3 2.5 7 4
075 75 95.0 104 88 97 60.0 44.7 15.3 2.5 7 4
080 80 98.4 109 95 105 60.0 44.3 15.7 3.0 7 4
085 85 104.7 114 100 110 60.0 44.3 15.7 3.0 7 4
090 90 111.0 119 105 115 65.0 49.3 15.7 3.0 7 4
095 95 114.0 124 110 120 65.0 49.3 15.7 3.0 7 4
100 100 117.4 129 115 125 65.0 49.3 15.7 3.0 7 4
