Basic characteristics
Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.

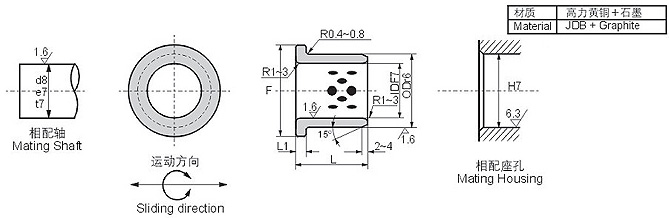

Unit:mm
D IDE7 ODr6

F

L1
-0.10
L -0.10
-0.30
15 20 25 30 35 40 50 60 80 100
10 14 10

+0.040
+0.025

 14

+0.034 +0.023

 22 2 1015 1020
12 18 12

+0.050
+0.028

 18 25 1215 1220
13 19 13 19 26 1315 1320
14 20 14 20 27 3 1415 1420
15 21 15 21 28 1515 1520 1525 1530
16 22 16 22 29 1615 1620 1625 1630
20 30 20

+0.061
+0.040

 30 40 2015 2020 2025 2030 2040
25 35 25 35

+0.050
+0.034

 45 2515 2520 2525 2530 2540
30 40 30 40 50 3020 3025 3030 3035 3040 3050
31.5 40 31.5

+0.075
+0.050

 40 3120 3135
35 45 35 45 60 5 3520 3530 3540 3550
40 50 40 50 65 4020 4030 4040 4050
45 55 45 55

+0.060
+0.041

 70 4530 4540 4550 4560
50 60 50 60 75 5030 5040 5050 5060
55 65 55

+0.090
+0.060

 65 80 5540 5560
60 75 60 75

+0.062
+0.043

 90 6040 6050 6080
63 75 63 75 85 6367
70 85 70 85

+0.073
+0.051

 105 7050 7080
75 90 75 90 110 7560
80 100 80 100 120 8060 8080 80100
90 110 90

+0.107
+0.072

 110

+0.076
+0.054

 130 9060 9080
100 120 100 120 150 10080 100100
120 140 120 140

+0.088
+0.063

 170 12080 120100
