Basic characteristics
Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.



Unit : mm

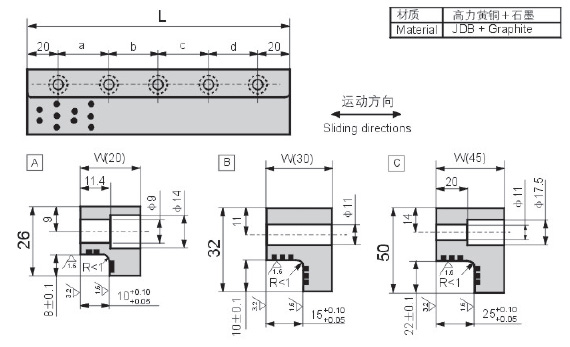

Stanard No W L Bolt Location Bolt Sketch
a b c d Type Q'ty
JSL-20*100 20 100 60 - - - M8 2 A
JSL-20*150 150 55 55 - - 3
JSL-20*200 200 55 50 55 - 4
JSL-30*100 30 100 60 - - - M10 2 B
JSL-30*150 150 55 55 - - 3
JSL-30*200 200 55 50 55 - 4
JSL-30*250 250 70 70 70 - 4
JSL-45*200 45 200 55 50 55 - 4 C
JSL-45*250 250 70 70 70 - 4
JSL-45*300 300 65 65 65 65 5
JSL-45*350 350 80 75 75 80 5 5
