Basic characteristics
Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.



Unit : mm

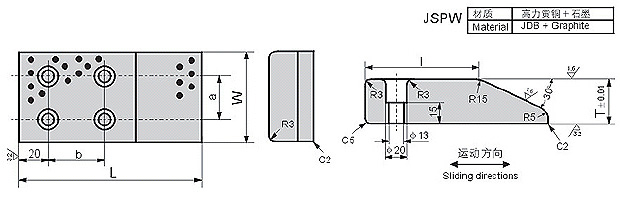

Stanard No

 W L T I a b
JSP-B-75*150 150 45 90 45
JSP-B-75*170 170 60
JSP-B-75*200 200 120 75
JSP-B-100*130 100 130 30 95 60 50
JSP-B-100*150 150 45 90 45
JSP-B-100*170 170 60
JSP-B-100*200 200 120 75
JSP-B-125*130 125 130 30 95 85 50
JSP-B-125*150 150 45 90 45
JSP-B-125*170 170 60
JSP-B-125*200 200 120 75
JSP-B-150*130 150 130 30 95 110 50
JSP-B-150*150 150 45 90 45
JSP-B-150*170 170 60
JSP-B-150*200 200 120 75




Unit : mm

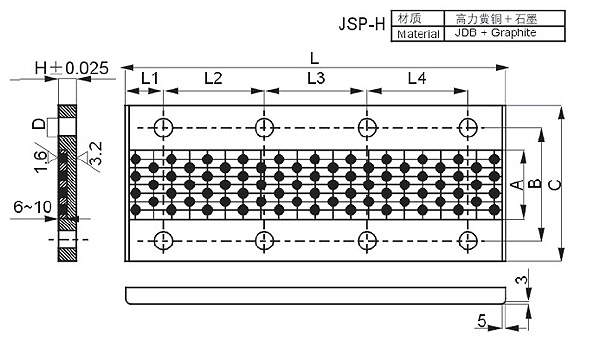

Stanard No

 L A B C H L1 L2 L3 L4 D

Bolt
JSP-H500*200 500 90 145 200 20 46 136 136 136 24 M22
JSP-H450*180 450 80 130 180 20 42 122 122 122 22 M20
JSP-H400*160 400 70 115 160 18 35 110 110 110 20 M16
JSP-H300*140 300 60 100 140 16 30 120 120 16 M14
