Basic characteristics
Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.



Unit : mm
Stanard No W L a b

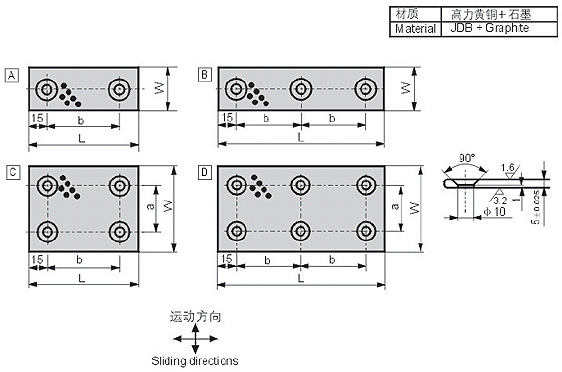

Sketch

JSP-18*50 18 50 20
JSP-18*75 75 - 45 A
JSP-18*100 100 70
JSP-18*150 150 60 B
JSP-28*50 28 50 20
JSP-28*75 75 - 45 A
JSP-28*100 100 70
JSP-28*150 150 60 B
JSP-38*50 38 50 20
JSP-38*75 75 - 45 A
JSP-38*100 100 70
JSP-38*150 150 60 B
JSP-48*75 48 75 45
JSP-48*100 100 - 70 A
JSP-48*125 125 95
JSP-48*150 150 60 B
JSP-75*75 75 75 45
JSP-75*100 100 45 70 C
JSP-75*125 125 95
JSP-75*150 150 60 D
JSP-100*100 100 100 70 C
JSP-100*125 125 70 95
JSP-100*150 150 60 D
