Basic characteristics
Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.

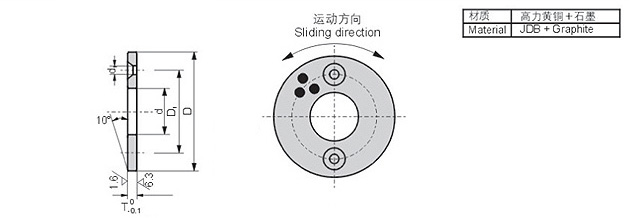

Unit : mm

Stanard No

d D
T 0
-0.1
Bolt
D1 Q'ty size d1
JTW-10 10.2 40 3 .... ..... .... ....
JTW-12 12.2 40 28 2 M3 3.5
JTW-13 13.2
JTW-14 14.2
JTW-15 15.2 50 35
JTW-16 16.2
JTW-16N .... .... .... ....
JTW-18 18.2 35 2 M3 3.5
JTW-20 20.2 5 M5 6
JTW-20N .... .... .... ....
JTW-25 25.2 55 40 2 M5 6
JTW-25N .... .... .... ....
JTW-30 30.2 60 45 2 M5 6
JTW-35 35.2 70 50
JTW-40 40.2 80 7 60 M6 7
JTW-45 45.3 90 67.5
JTW-50 50.3 100 8 75 4
JTW-55 55.3 110 85
JTW-60 60.3 120 90 M8 9
JTW-65 65.3 125 95
JTW-70 70.3 130 10 100
JTW-75 75.3 140 110
JTW-80 80.3 150 120
JTW-90 90.5 170 140 M10 11
JTW-100 100.5 190 160
JTW-120 120.5 200 175
