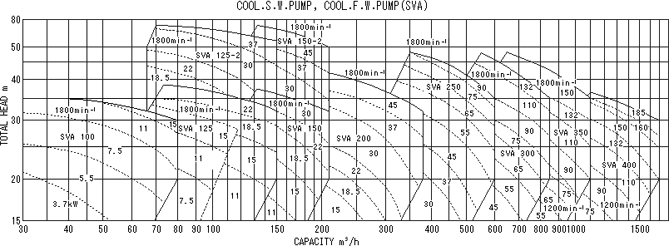

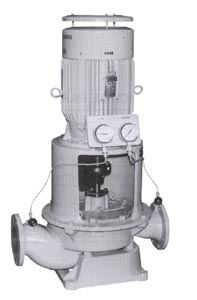

ㆍServices |
| |
Jacket cooling fresh water pump |
| |
Sea water service pump |
| |
Others |
|
 |
| Dimensions (SVA from 100 to 150 - 2) |
|
 |
| |
| Item / Model |
SVA 100 |
SVA 125 |
SVA 125-2 |
SVA 150 |
SVA 150-2 |
| Rotation |
Clockwise when viewed from driver end |
| Suction bore (mm) |
100 |
125 |
125 |
150 |
150 |
| Discharge bore (mm) |
100 |
125 |
125 |
150 |
150 |
| Stuffing box seal |
Gland packing or Mechanical seal |
| Weight : Cast Iron (Bronze) (kg) |
165(175) |
175(195) |
250(270) |
210(230) |
260(280) |
| Water filled in casing (kg) |
6 |
18 |
26 |
25 |
33 |
|
|
 |
 |
 |
| |

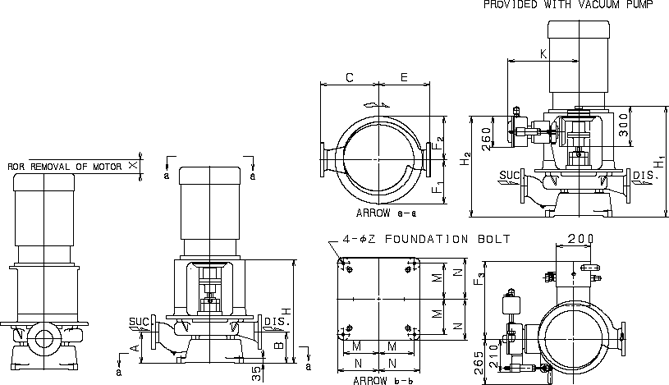

| SVA from 100 to 150-2 |
 |
| mm |
| Model |
A |
B |
C |
E |
F1 |
F2 |
F3 |
H |
H1 |
H2 |
I |
K |
M |
M1 |
M2 |
N |
N1 |
N2 |
X |
Z |
Mecha.seal |
| SVA 100 |
180 |
180 |
340 |
300 |
255 |
255 |
470 |
609 |
689 |
629 |
- |
420 |
170 |
- |
- |
195 |
- |
- |
170 |
25 |
35 |
| SVA 125 |
190 |
190 |
380 |
320 |
255 |
255 |
470 |
629 |
709 |
649 |
- |
420 |
170 |
- |
- |
195 |
- |
- |
170 |
25 |
35 |
| SVA 125-2 |
220 |
220 |
420 |
350 |
310 |
310 |
550 |
717.5 |
820 |
755 |
- |
500 |
210 |
- |
- |
240 |
- |
- |
200 |
27 |
45 |
| SVA 150 |
215 |
215 |
420 |
360 |
255 |
270 |
510 |
700 |
830 |
765 |
- |
500 |
210 |
- |
- |
240 |
- |
- |
170 |
27 |
45 |
| SVA 150-2 |
215 |
215 |
460 |
390 |
310 |
310 |
550 |
715 |
815 |
750 |
- |
500 |
210 |
- |
- |
240 |
- |
- |
200 |
27 |
45 |
|
|
|
 |
| |
| Discharge pressure gauge |
1 |
| Suction compound gauge |
1 |
| Gauge board |
1 |
| Gauge root valve |
2 |
| Sealing pipe |
1 set |
| Air vent valve |
1 |
| Vacuum pump(for self priming pump) |
1 set |
|
|
 |
| |
| 1 pump set of the following spare parts is supplied for 1 ship |
| Gland packing or mechanical seal |
| Coupling bolt & nut |
| Mouth ring |
| Line bearing |
| Complete set of rotating element(if required) |
|
|
| |
