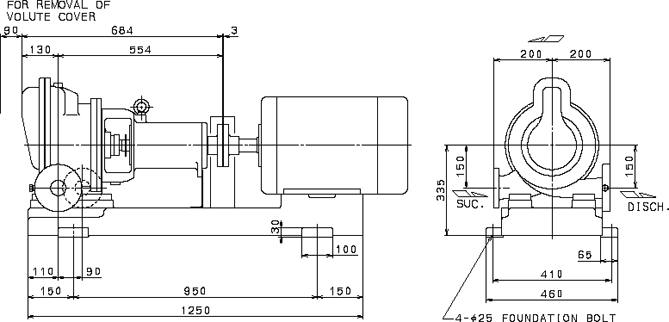

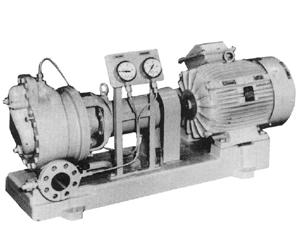

Feed pump for exhaust gas boiler of diesel ship |
|
|
 |
| |
| Item / Model |
SHQ 65 |
| Rotation |
Clockwise when viewed from driver end |
| Suction bore (mm) |
65 |
| Discharge bore (mm) |
65 |
| Suction bore (mm) |
6308VV + 6309VV |
| Ball bearing |
Abv. 20,000 |
| Service life |
Gland packing or Mechanical seal |
| Weight : Cast Iron (Bronze) (kg) |
180 |
| Water filled in casing (kg) |
7 |
|
|
 |
 |
 |
|
 |
| |
| Bracket |
1 |
| Discharge pressure gauge |
1 |
| Suction pressure gauge |
1 |
| Gauge board |
2 |
| Gauge root valve |
1 |
| Sealing pipe |
1 set |
| Air vent valve |
1 |
| ACoupling cove |
1 |
|
|
 |
| |
| 1 pump set of the following spare parts is supplied for 1 ship |
| Gland packing or mechanical seal |
| Coupling bolt , nut & washer |
| Mouth ring |
| Casing ring |
| Complete set of rotating element(if required) |
|
|
| |
