ㆍServices |
| |
Fire and general service pump |
| |
Bilge and ballast pump |
| |
Emergency fire pump |
| |
Others |
|
|
 |
| |
| Item / Model |

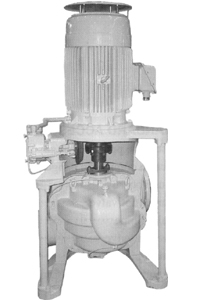

RVP 250 |
| Rotation |
Clockwise when viewed from driver end |

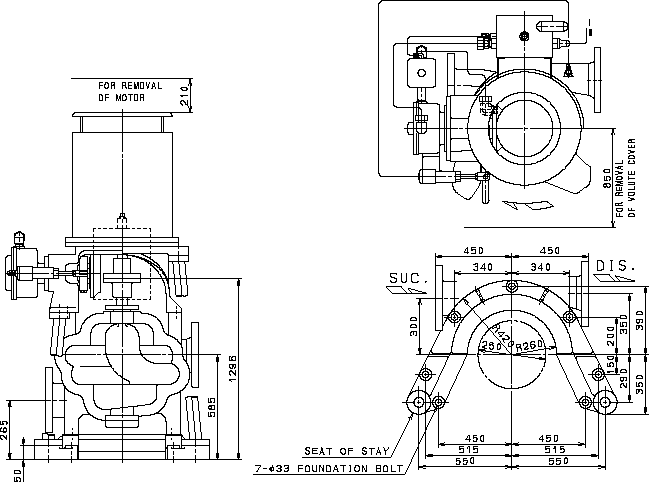

| Suction bore (mm) |
250 |
| Discharge bore (mm) |
250 |
| Stuffing box seal |
Gland packing or Mechanical seal |
| Weight : Cast Iron (Bronze) (kg) |
715(800) |
| Water filled in casing (kg) |
110 |
|
|
 |
 |
 |
|
 |
| |
| Discharge pressure gauge |
1 |
| Suction compound gauge |
1 |
| Gauge board |
1 |
| Gauge root valve |
2 |
| Sealing pipe |
1 set |
| Air vent valve |
1 |
| Return pipe |
1 |
| Vacuum pump(for self priming pump) |
1 set |
|
|
 |
| |
| 1 pump set of the following spare parts is supplied for 1 ship |
| Gland packing or mechanical seal |
| Coupling bolt , nut & washer |
| Mouth ring |
| Line bearing |
| Complete set of rotating element(if required) |
|
|
| |
