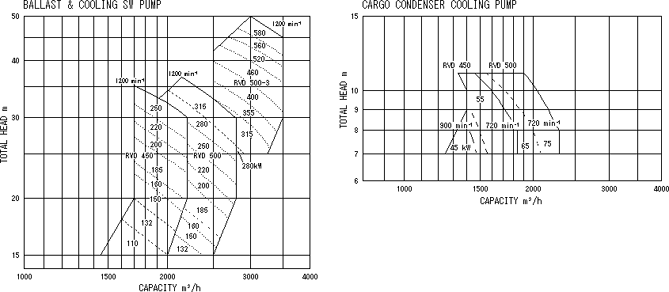

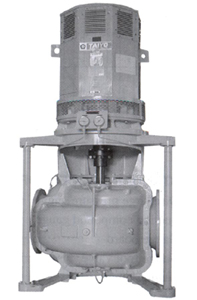

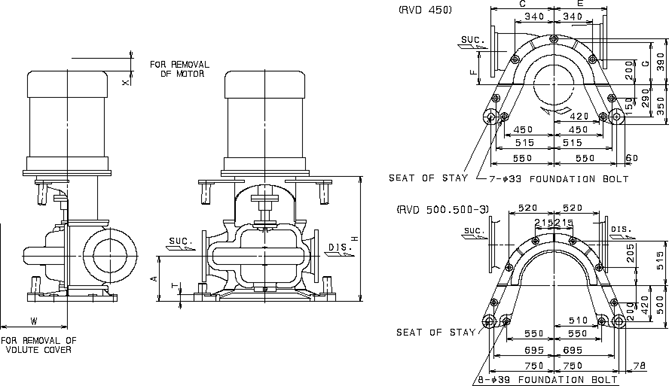

| Dimensions (RVD from 450 to 500 - 3) |
|
 |
| |
| Item / Model |
RVD 450 |
RVD 500 |
RVD 500 - 3 |
| Rotation |
Clockwise when viewed from driver end |
| Suction bore (mm) |
450 |
500 |
600 |
| Discharge bore (mm) |
450 |
500 |
500 |
| Stuffing box seal |
Gland packing or Mechanical seal |
| Weight : Cast Iron (Bronze) (kg) |
1450 |
2020 |
2450 |
| Water filled in casing (kg) |
420 |
650 |
860 |
|
|
 |
 |
 |
| |
 |
| mm |
| Model |
A |
B |
C |
E |
F |
H |
T |
W |
X |
Mecha.seal |
| RVD 450 |
500 |
610 |
490 |
370 |
370 |
1270 |
50 |
900 |
200 |
75 |
| RVD 500 |
540 |
750 |
620 |
470 |
470 |
1360 |
50 |
1100 |
220 |
75 |
| RVD 500 - 3 |
610 |
750 |
650 |
500 |
500 |
1510 |
50 |
110 |
270 |
120 |
|
|
|
 |
| |
| Discharge pressure gauge |
1 |
| Suction compound gauge |
1 |
| Gauge board |
1 |
| Gauge root valve |
2 |
| Sealing pipe |
1 set |
| Air vent valve |
1 |
|
|
 |
| |
| 1 pump set of the following spare parts is supplied for 1 ship |
| Gland packing or mechanical seal |
| Coupling bolt & nut |
| Mouth ring |
| Line bearing |
| Complete set of rotating element(if required) |
|
|
| |
