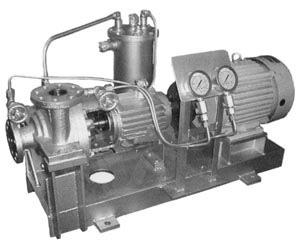

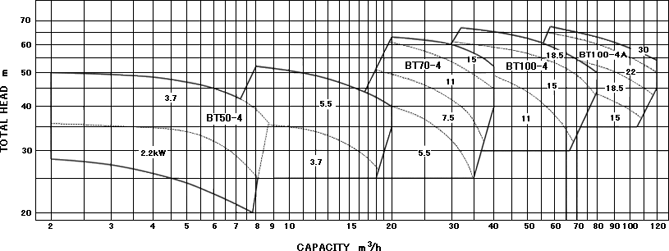

Boiler water circulating pump for exhaust gas boiler |
|
|
 |
| |
| Item / Model |
BT 50 - 4 |
BT 70 - 4 |
BT 100 - 4 |
BT 100 - 4A |
| Rotation |
Clockwise when viewed from driver end |
| Suction bore (mm) |
50 |
65 |
100 |
125 |
| Discharge bore (mm) |
50 |
65 |
100 |
100 |
| Ball bearing |
7310DB + 6309 |
| Service life |
Abv. 60,000 |
| Amount of LO filled |
0.67(turbine oil ISO VG-68) |
| Stuffing box seal |
Mechanical seal |
| Weight : Cast Iron (Bronze) (kg) |
155 |
192 |
245 |
255 |
| Water filled in casing (kg) |
2 |
3 |
3 |
4.5 |
|
|
 |
 |
 |
| BT from 200 to 400 |
 |
| mm |

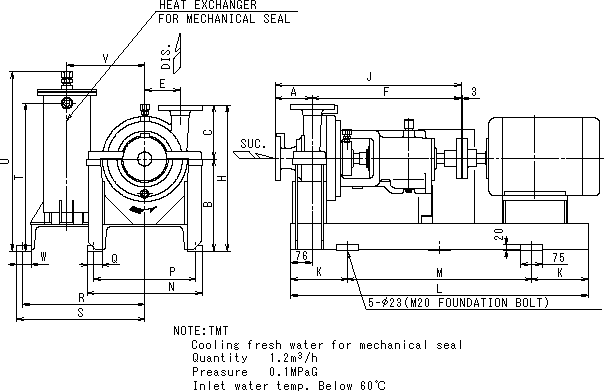

| Model |
A |
B |
C |
E |
F |
H |
J |
K |
L |
M |
N |
P |
Q |
R |
S |
T |
U |
V |
W |
Mecha.seal |
| BT 50 - 4 |
130 |
325 |
190 |
125 |
526 |
515 |
656 |
200 |
1050 |
650 |
405 |
360 |
52.5 |
430 |
452.5 |
522 |
615 |
275 |
52.5 |
35 |
| BT 70 - 4 |
130 |
325 |
210 |
125 |
526 |
535 |
656 |
200 |
1150 |
750 |
405 |
360 |
52.5 |
430 |
452.5 |
522 |
615 |
275 |
52.5 |
35 |
| BT 100 - 4 |
150 |
350 |
210 |
135 |
526 |
560 |
676 |
200 |
1200 |
800 |
530 |
485 |
75 |
495 |
517.5 |
532 |
615 |
315 |
77.5 |
35 |
| BT 100 - 4A |
160 |
350 |
210 |
135 |
535 |
560 |
695 |
200 |
1200 |
800 |
530 |
485 |
75 |
495 |
517.5 |
532 |
633 |
315 |
77.5 |
35 |
|
|
 |
| |
| Bracket |
1 |
| Discharge pressure gauge |
1 |
| Suction pressure gauge |
1 |
| Gauge stand |
1 |
| Gauge root valve |
2 |
| Coupling cover |
1 |
|
|
 |
| |
| 1 pump set of the following spare parts is supplied for 1 ship |
| Ball bearing |
| Mouth ring |
| Mechanical seal |
| Coupling bolt, nut & ring |
| Complete set of rotating element(if required) |
|
|
| |
