      Bilgepump

Model VPS5 VPS10 VPS20 VPS30
Capacity(m3/h) 5 10 20 30
Totalhead(m) 45
Suctionhead(m) -5
Liquidcylinderbore(mm) 80 100 120 125
Strokelength(mm) 70 90 120 150
No.ofdoublestroke(min-1) 76 76 76 76
Suctionbore(mm) 50 65 80 100
Dischargebore(mm) 40 50 65 80
Ballbearing(countershaft) 2X2306 2X2308 2X2309 2X2309
Servicelife(hr) Abv.60,000
?Amountofgreasefilled(g) 2X13 2X15 2X25 2X25
Ballbearing(crankshaft) 2X2309 2X2310 2X2310 2X2311
Servicelife(hr) Abv.60,000
Amountgreasefilled(g) 2X30 2X35 2X45 2X50
L.O.filledinoilbox(liter) 0.3 0.3 0.4 0.4
Weight(withoutmotor)FC(BC)(kg) 300(340) 420(480) 570(620) 700(765)
Waterfilledincasing(kg) 9 13 20 30

BTfrom200to400
mm

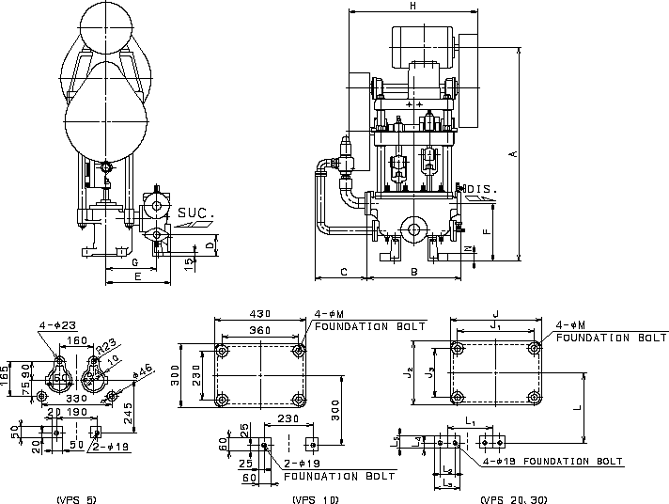

Model A B C D E F G H J J1 J2 J3 L L1 L2 L3 L4 L5 M N
VPS5 1059 450 280 85 300 235 235 600 - - - - - - - - - - - 35
VPS10 1253 550 225 185 365 340 290 660 - - - - - - - - - - - 85
VPS20 1422 650 290 220 390 390 305 730 470 400 320 250 310 250 60 100 25 57 27 85
VPS30 1544 680 345 230 410 430 315 780 500 430 350 280 325 270 60 100 28 65 27 90

Dischargepressuregauge 1
Suctioncompoundgauge 1
Gaugeboard 1
Gaugerootvalve 2
Airventvalve 1
Greasenipple 6
Reliefnipple 4
Oilbox 1
Oilcup 2
Oilpan&brush 2sets
Drainpipe 2sets

Liquid piston ring 1 cylinder
Complete set of suction valve 1 set
Complete set of discharge valve 1 set
Escape valve spring 1
Crank pin metal 1 set
Reamer bolt & nut 1 set
Crosshead pin metal 1 set
Ball bearing (counter shaft) 1 set
Ball bearing (crank shaft) 1 set
Gland packing 1 cylinder
