MAIN C.S.W. PUMP
HIGH TEMP C.F.W. PUMP
FRESH WATER COOLING PUMP
SCRUBBER C.S.W. PUMP

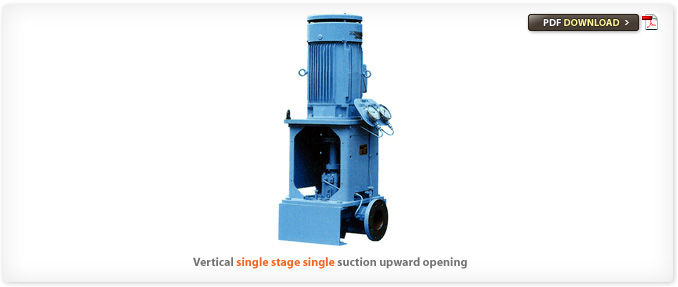

Single or double suction in single stage
Product lubricated non bearing
Minimum floor space required
Easy dismantling - overhaul without disconnecting
Suction and discharge pipes
Rigid casing resists pipe strain
Alternative to alternative priming arrangements
Minimum number of components

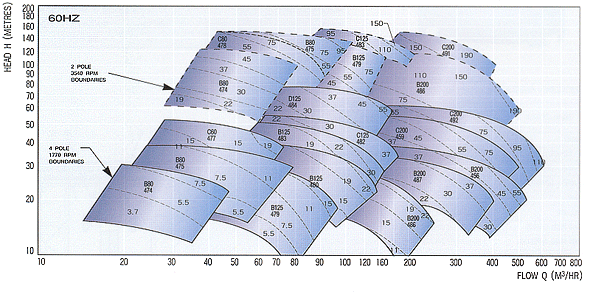

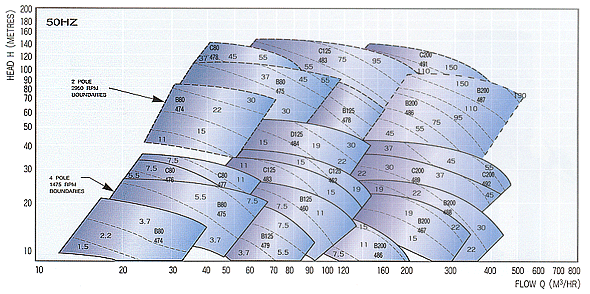

Capacity : 15 m©ø/Hr ~ 500 m©ø/Hr
Head : 10 m ~ 140 m
Suction Dimension : ©ª80 mm ~ ©ª200 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement.
