General and Chemical industries
Power plant



Foot mount and centerline mount type
Design and maintenance standard complying with process industry is ensured
High efficiency and low NPSHr
Double volute casing (above DN 80 branch size)

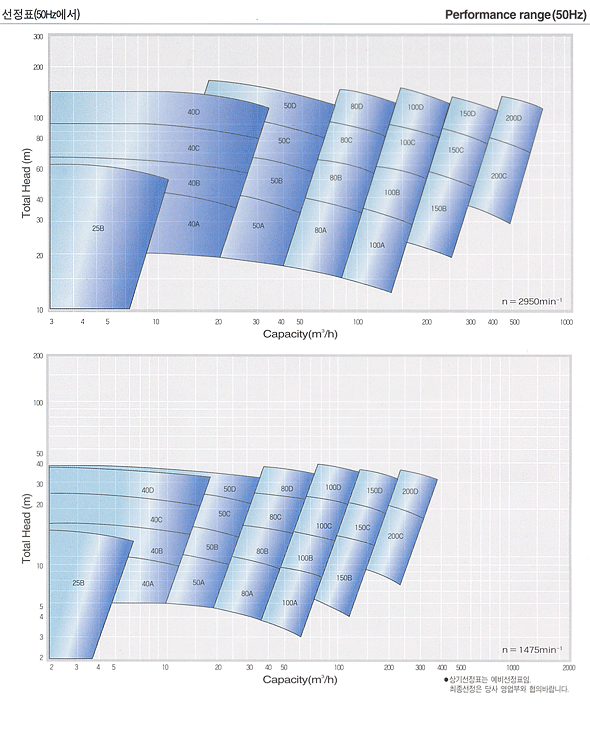

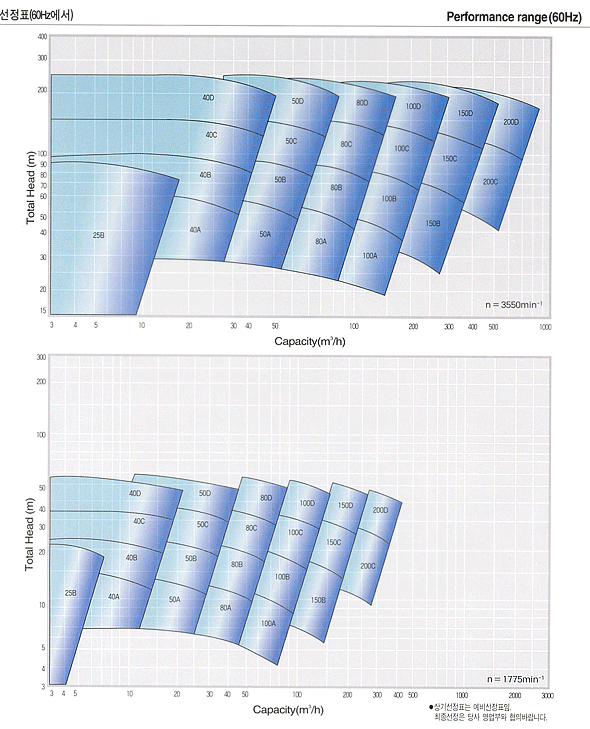

Capacity : 0.23 m©ø/min ~ 85 m©ø/min
Head : 3 m ~ 250 m
Temperature : 230 ¡É
Suction Dimension : ©ª25 mm ~ ©ª200 mm
Rotation Direction : CW
* The out of the above range can be supplied according to customer's order placement.
