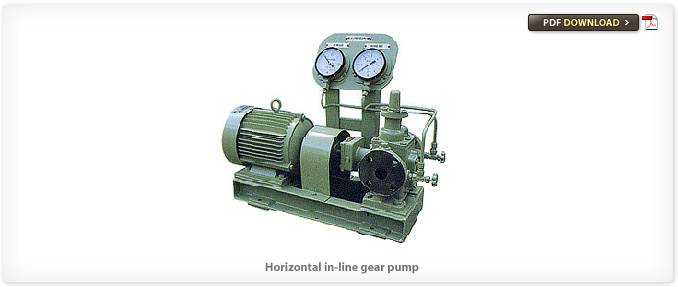

  CONDENSATE (NVC) BOILER FEED WATER (MB) H.F.O / L.O SUPPLY (NLG) H.F.O / L.O SUPPLY (NHGH)
  H.F.O TRANS (HG) H.F.O TRANS (VG) SLUDGE (IS) BILGE STRIPPING(WL)
  SEWAGE DISCHARGE(EVP)

F.O. TRANSFER PUMP
D.O. TRANSFER PUMP
L.O. TRANSFER PUMP


Internally sat metal bearing, lubricated by the pumping liquid
Built-in relief valve type
Using the One-Point-Contact type of gear
Gland packing or mechanical seal
Differential press : 2 ~ 6kg/§²
Viscosity 5 ~ 2000 cst


Capacity : 1 m©ø/Hr ~ 30 m©ø/Hr
Head : 2 kg/cm©÷ ~ 6 kg/cm©÷
Suction Dimension : ©ª32 mm ~ ©ª80 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement
