General Industry and Chemical industries
Sewage treatment and power plant
Pulp & paper industries
Power Plant



Gently handling of the liquid and minimum damage to crystal
Great variety in metallic materials for corrosion and wear resistance
Back-full-out feature for easy maintenance
Soilds passes without clogging

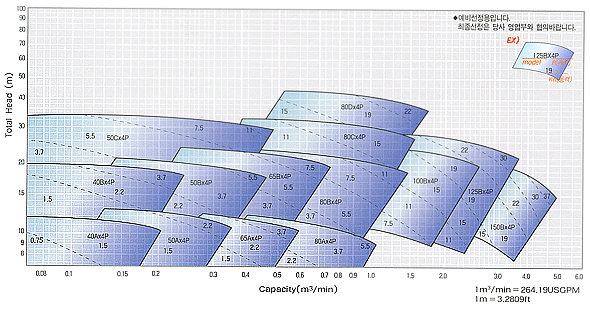

Capacity : 0.05 m©ø/min ~ 5 m©ø/min
Head : 5 m ~ 44 m
Suction Dimension : ©ª40 mm ~ ©ª150 mm
Rotation Direction : CW
* The out of the above range can be supplied according to customer's order placement.
