SLUDGE PUMP
OILY BILGE PUMP


Easily conveyable high viscous and high dense material
Uniform, non-pulsating flow
High suction capability
Vulcanized-in, Easily replaceable stator, Corrosion-proof, therefore a Long service life
Single stage up to 6 bar
Double stage up to 12 bar
Four stage up to 24 bar

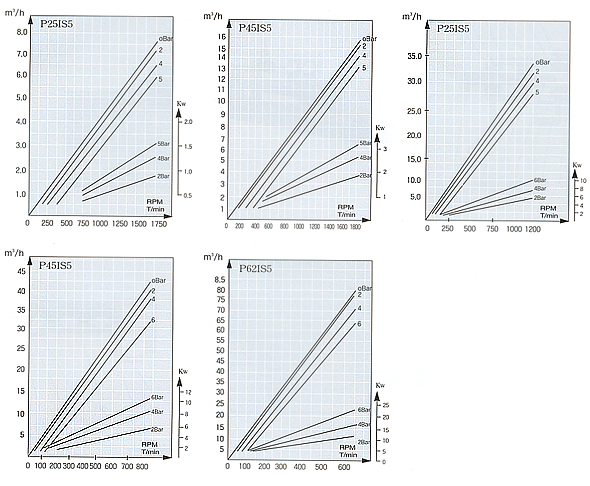

Capacity : 1 m©ø/Hr ~ 75 m©ø/Hr
Head : 1 Kg/§² ~ 5 Kg/§²
Suction Dimension : ©ª40 mm ~ ©ª125 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement
