MAIN C.S.W. PUMP
HIGH TEMP C.F.W. PUMP
FRESH WATER COOLING PUMP
SCRUBBER C.S.W. PUMP


The stuffing box is fitted with mechanical seal only
Flushing water is led to the stuffing box from the discharge side, and returned to the suction side in casing after flushing mechanical seal

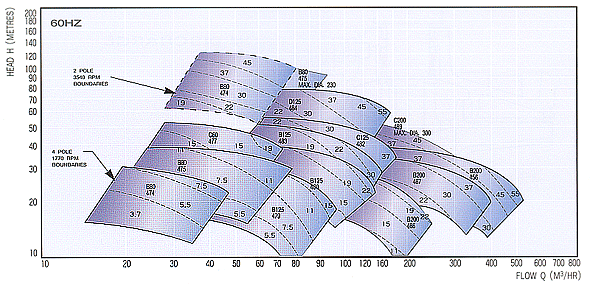

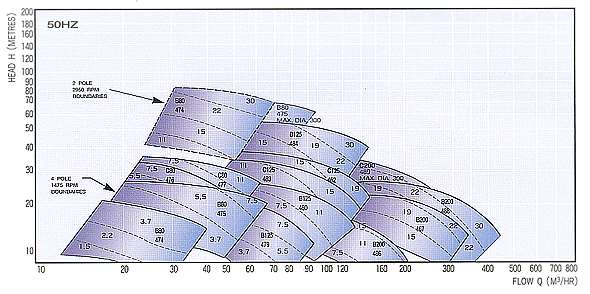

Capacity : 15 m©ø/Hr ~ 500 m©ø/Hr
Head : 10 m ~ 140 m
Suction Dimension : ©ª80 mm ~ ©ª200 mm
Rotation Direction : CW
* The out of the above range can be supplied according to customer's order placement. .
