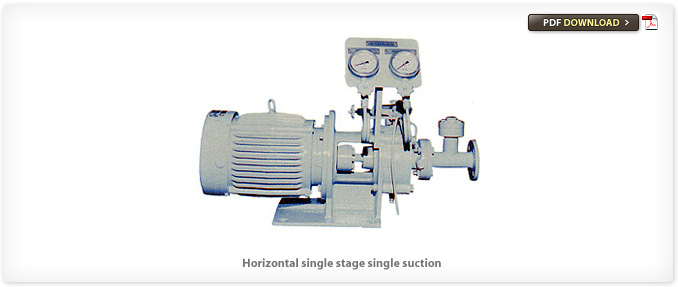

HOT WATER CIRC. PUMP
M/E JACKET.C.F.W. PUMP
FRESH. WATER PUMP


The stuffing box is fitted with mechanical only
Flushing water is led to the stuffing box from the discharge side through the passage between casing and wearing and returned to the suction side after flushing mechanical seal

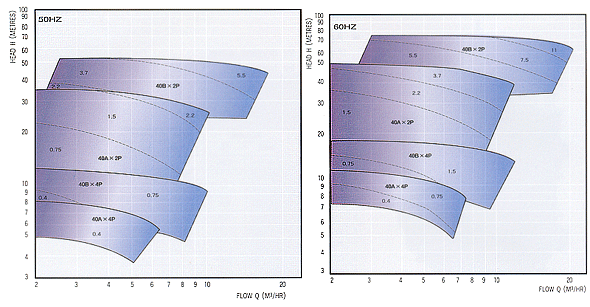

Capacity : 14 m©ø/min ~ 550 m©ø/min
Head : 3.2 m ~ 14 m
Temperature : 0 ¡É ~ 40 ¡É
Suction Dimension : ©ª350 mm ~ ©ª2000 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement
