COOLING SEA WATER PUMP
COOLING FRESH WATER PUMP
BILGE FIRE & G/S PUMP
BALLAST PUMP

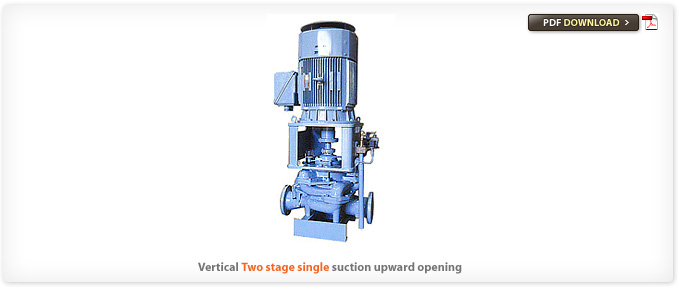

Single or double suction in single and double stage
Oil lubricated metal bearing
Minimum floor space required
Easy dismantling - overhaul without disconnecting
Suction and discharge pipes
Rigid casing resists pipe strain
Alternative builds to suit customer's requirements
Suitable to alternative priming arrangements
Minimum number of components

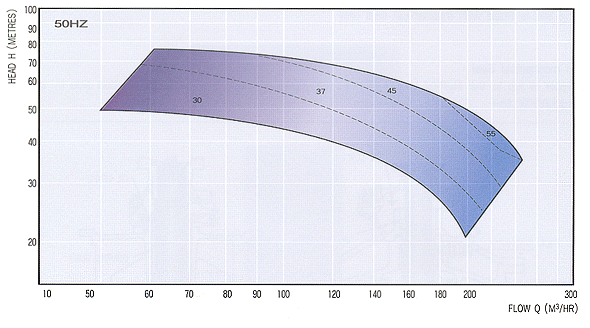

Capacity : 70 m©ø/Hr ~ 300 m©ø/Hr
Head : 30 m ~ 110 m\
Suction Dimension : ©ª150 mm
Rotation Direction : CW
* The out of the above range can be supplied according to customer's order placement. .
