MAIN C.S.W. PUMP
WATER SPRAY S.W. PUMP
BALLAST PUMP
VACUUM COND.C.S.W. PUMP



Single or double suction in single stage
Product lubricated non bearing
Minimum floor space required
Easy dismantling - overhaul without disconnecting
Suction and discharge pipes
Rigid casing resists pipe strain
Alternative to alternative priming arrangements
Minimum number of components

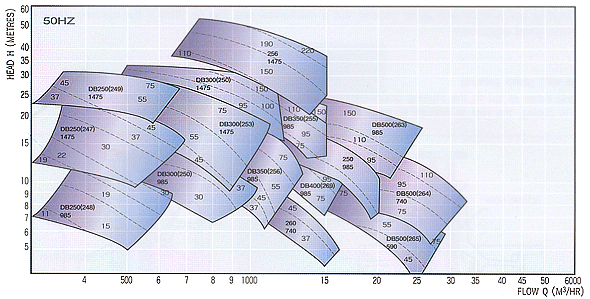

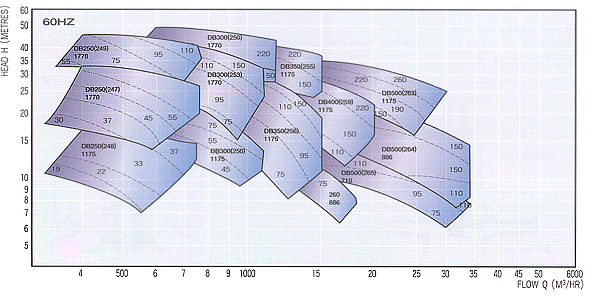

Capacity : 400 m©ø/Hr ~ 3500 m©ø/Hr
Head : 8 m ~ 50 m
Suction Dimension : ©ª250 mm ~ ©ª500 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement.
