BUSINESS RANG > PUMPS > SHIN SHIN MACHINERY CO.,LTD

  COOLING F.W. & S.W (VID) COOLING F.W. & S.W (VID-DB) COOLING F.W. & S.W (VIB) COOLING F.W. & S.W (VIB-DB)
  FIRE & GS (2C-VIB) COOLING F.W. & S.W (VIC) COOLING F.W. & S.W (VIG-DB) BOILER FEED WATER (MT)
  BOILER WATER CIRC (ZAH) SELF-LUB LARGE CAPACITY (BHG) VERTICAL SINGLE (MSS) VERTICAL DOUBLE (MDS)
  VERTICAL SINGLE (MSC) VERTICAL DOUBLE (MDC) FIRE & G/S (SVS) FIRE & G/S (SVF)
  FIRE & G/S (VF) LUBRICATING OIL (SDF) LUBRICATING OIL (MLO) SW & SANITARY (EHS)
  MISCELLANEOUS (EHC) MISCELLANEOUS C.W. (SHC) HYDROPHORE UNIT (EHU) BOILER WATER CIRC (BCP)
  CONDENSATE (NVC) BOILER FEED WATER (MB) H.F.O / L.O SUPPLY (NLG) H.F.O / L.O SUPPLY (NHGH)
  H.F.O TRANS (HG) H.F.O TRANS (VG) SLUDGE (IS) BILGE STRIPPING(WL)
  SEWAGE DISCHARGE(EVP)

M/E AIR COOLER CHEM. CLEAN PUMP
FIRE, BILGE & G.S. PUMP
BALLAST PUMP


Back-full-out feature for easy maintenance
Great variety in metallic materials for corrosion and wear resistance
Good efficiency smooth and trouble free operation throughout a wide range of hydraulic coverage

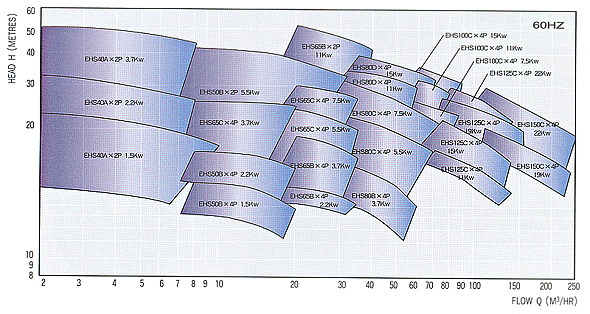

Capacity : 0.1 m©ø/min ~ 210 m©ø/min
Head : 55 m ~ 104 m
Suction Dimension : ©ª65 mm ~ ©ª150 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement
