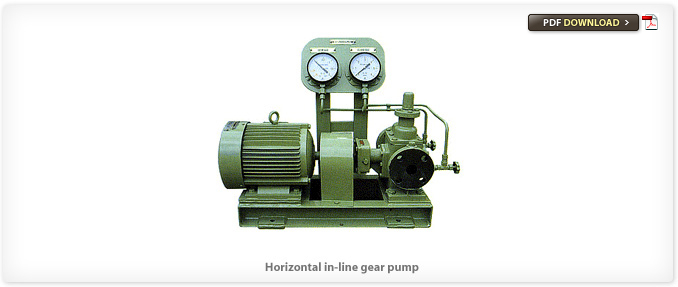

F.O. TRANSFER PUMP
D.O. TRANSFER PUMP
L.O. TRANSFER PUMP


Internally sat metal bearing, lubricated by the pumping liquid
Built-in relief valve type
Using the One-Point-Contact type of gear
Gland packing or mechanical seal
Differential press up to 16kg/§²
Viscosity 5 ~ 2000 cst


Capacity : 2 m©ø/Hr ~ 20 m©ø/Hr
Head : 8 kg/cm©÷ ~ 16 kg/cm©÷
Suction Dimension : ©ª40 mm ~ ©ª100 mm
Rotation Direction : CW
The out of the above range can be supplied according to customer's order placement
