General and Chemical industries
Pulp & paper industries



The suction branch can be led to the right, to the left or upwards
The impeller followed by diffuser maximize the efficiency of pump
The axial thrust caused by the single-entry impeller is absorbed by balance-holes

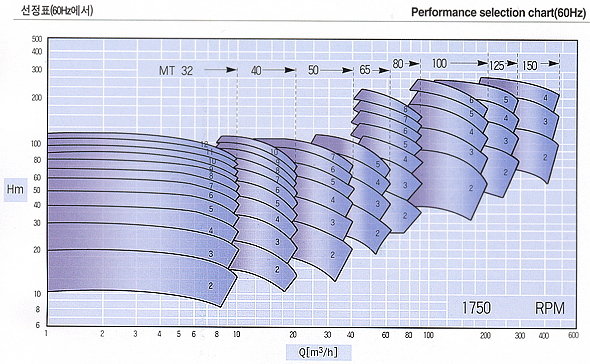

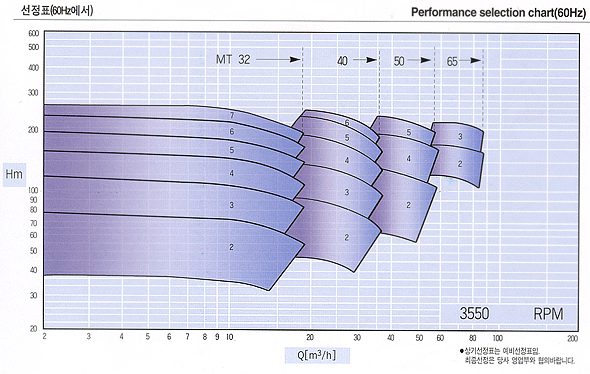

Capacity : 0.26 m©ø/Hr ~ 480 m©ø/Hr
Head : 8 m ~ 280 m
Suction Dimension : ©ª40 mm ~ ©ª200 mm
Rotation Direction : CW
* The out of the above range can be supplied according to customer's order placement.
