MAIN C.S.W. PUMP
WATER SPRAY S.W. PUMP
BALLAST PUMP
VACUUM COND.C.S.W. PUMP



The stuffing box is fitted with gland packing, but a mechanical seal can be fitted if the customer requires it to eliminate gland adjustment
When self priming is required, Air Ejector Primer or Liquid Ring Primer (LRP) is available

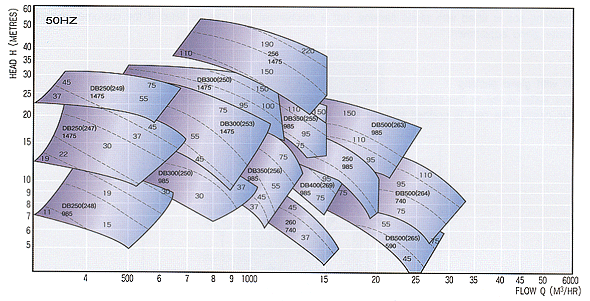

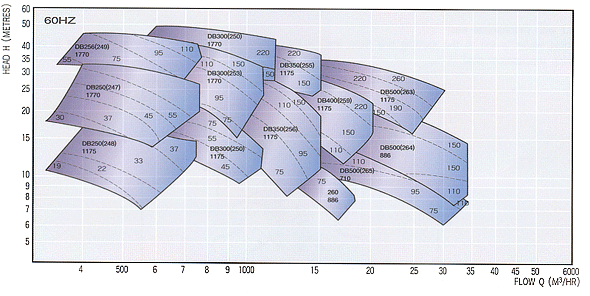

Capacity : 400 m©ø/Hr ~ 3500 m©ø/Hr
Head : 8 m ~ 50 m
Suction Dimension : ©ª250 mm ~ ©ª500 mm
Rotation Direction : CW
* The out of the above range can be supplied according to customer's order placement. .
